Automotive Low-Voltage Wiring Harness/Signal Cable Material Solutions

Special Features

TPE-S series
are polymer materials modified from SEBS polystyrene-based substrates with flame retardants and other additives. They possess excellent heat resistance, ozone resistance, migration resistance, good flexibility, scratch resistance, and electrical properties.

Modified PP type
Dielectric constant 2.10~2.30, loss factor <10 (test frequency: 1MHz), excellent and mature insulation and anti-attenuation performance. Applications include insulation of FLR Ethernet (sensor) link cables for German standard automotive wiring harnesses, etc.

Product Certification

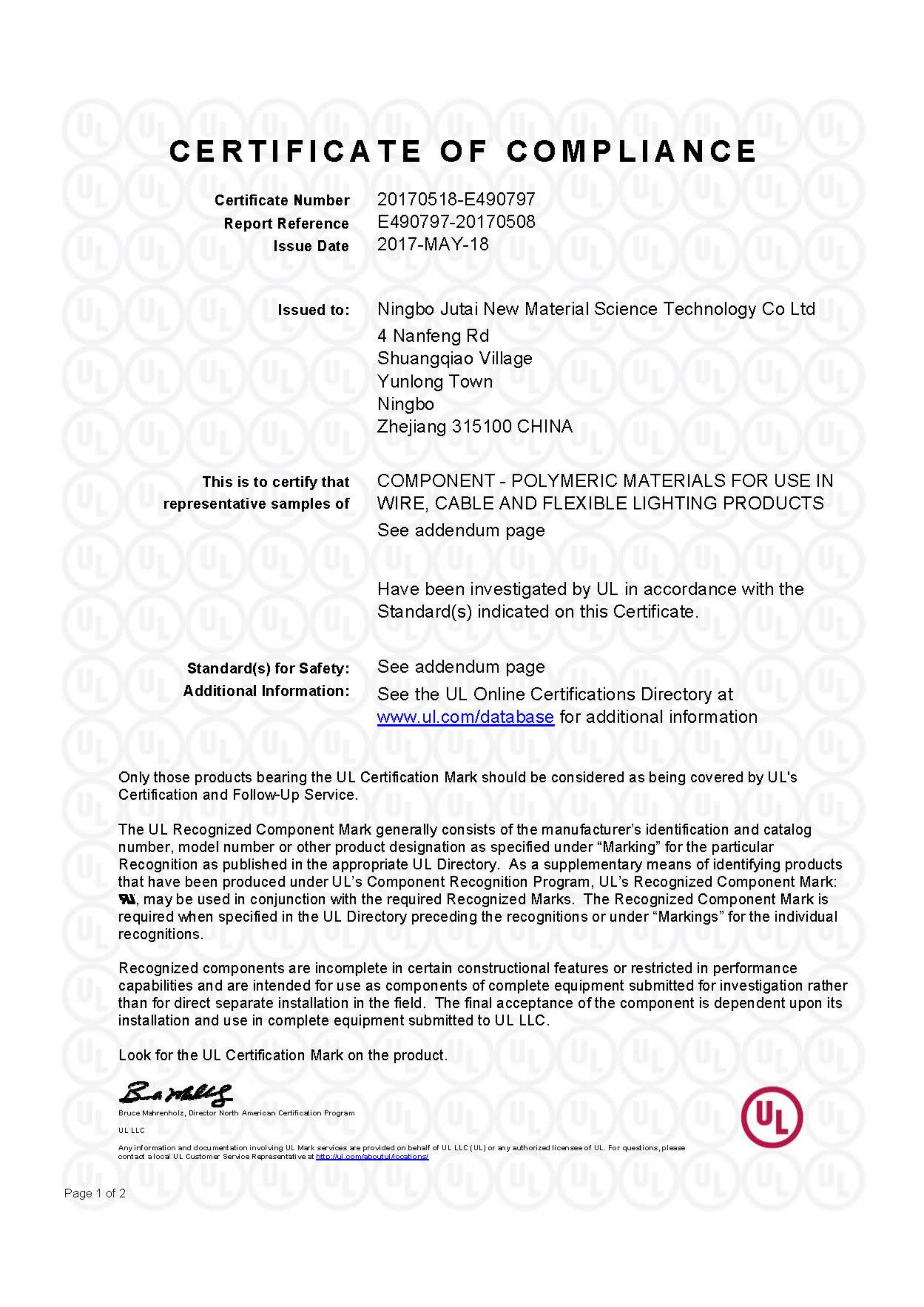

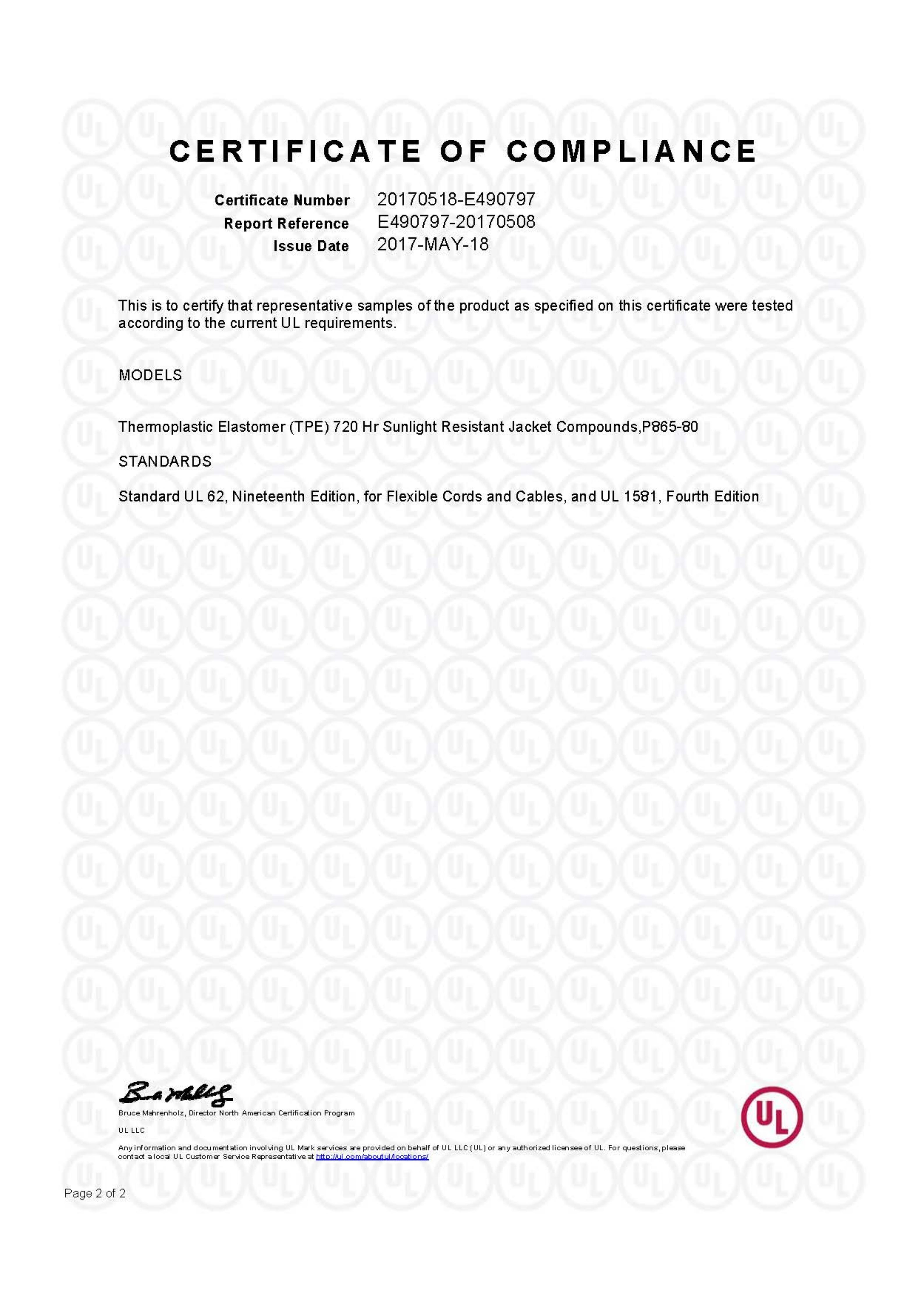

US-standard halogen-free environmentally friendly charging pile material with UL Yellow Card certification QMTT2 (E490797)

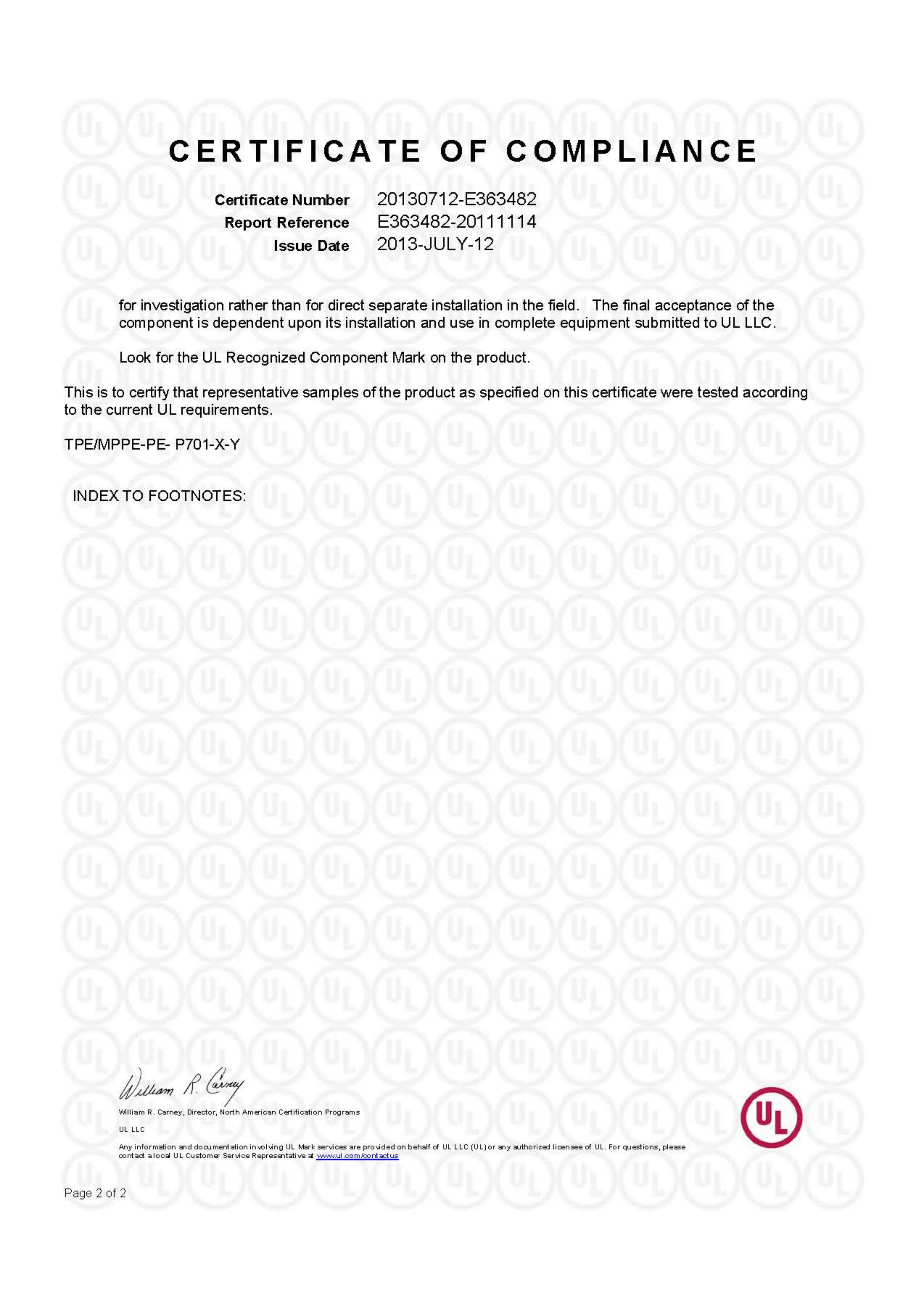

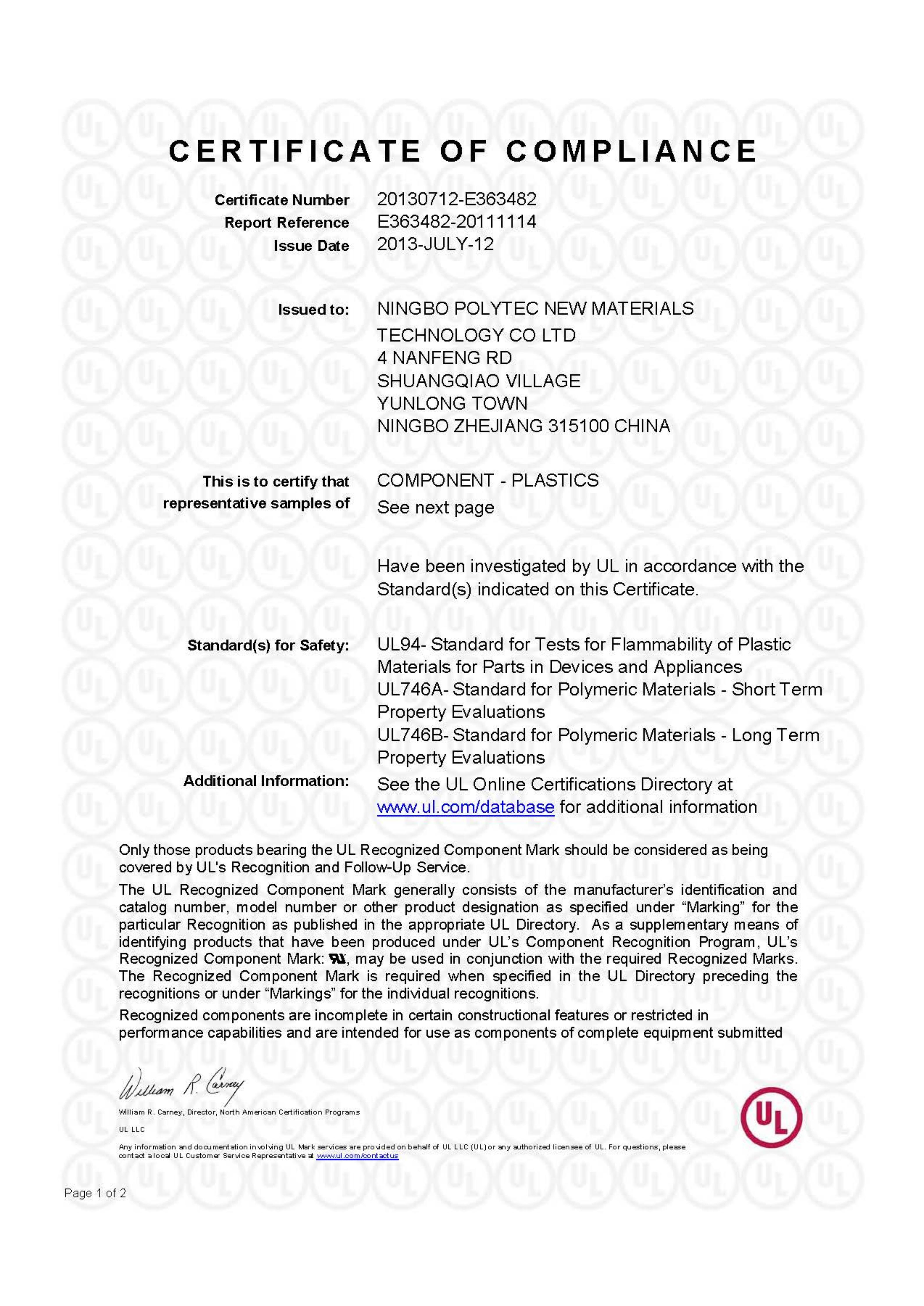

UL Flame Retardant Yellow Card Certification QMFZ2 (E363482)

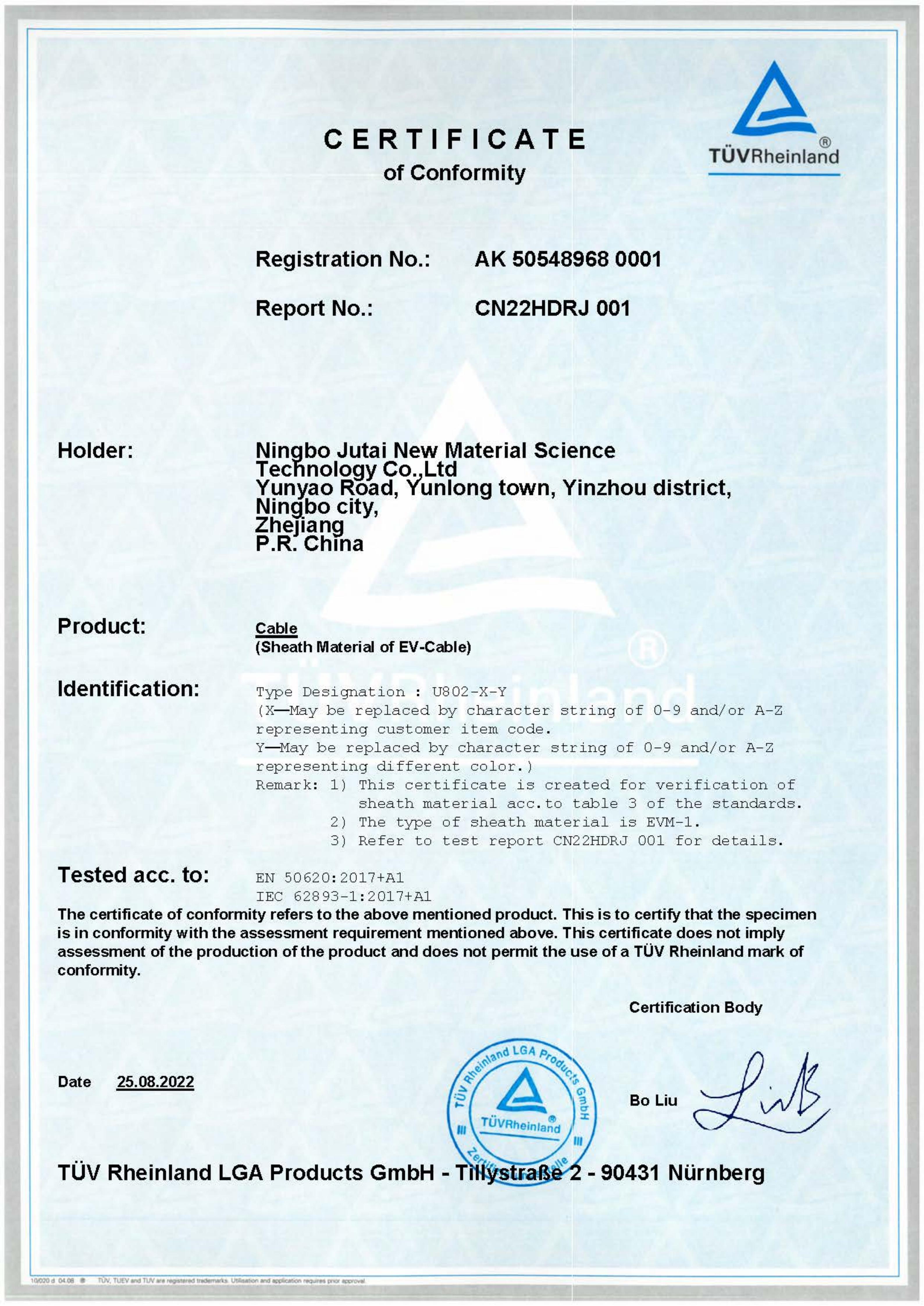

European standard charging pile halogen-free environmental protection announcement material TUV Blue Card certification (AK505489680001)

Typical Solutions and Physical Properties

Standards & Materials	IS0 19642	Typical applications
TPE-S	-	FLR 31Y
Modified PP	-	FLR 9Y

Typical Grades	S868-55DX	S868-40D	P868-92Y	P868-85Y
Material	TPE-S	TPE-S	TPE-S	TPE-S
Tensile strength / MPa	13	12	14	13.5
Elongation at break /%	≥300	≥300	≥400	≥400
Volume resistivity / Ω·cm (20°C)	>1*10¹⁵	>1*10¹⁵	>1*10¹⁵	>1*10¹⁵
Hardness / Shore A/D	55±3D	42±3D	92±3A	85±3A
High temperature pressure test / °C	125	125	125	125
Proportion	1.04	1.03	1.04	1.05
Flame retardant rating (cables)	IS0 19642、IEC60332-1
Temperature rating/°C	-40~125	-50~125	-50~125	-50~125

Typical Grades	P868-60D	P863-60D	P868-50D	P468-62DX
Material	PP	PP	PP	PP
Tensile strength / MPa	18.5	19	17	25
Elongation at break /%	≥300	≥300	≥300	≥500
Volume resistivity / Ω·cm (20°C)	>1*10¹⁵	>1*10¹⁵	>1*10¹⁵	>1*10¹⁵
Hardness / Shore A/D	60±3D	60±3D	55±3D	62±3D
High temperature pressure test / °C	125	105	125	125
Proportion	1.04	1.05	1.05	0.92
Dielectric Constant	≤2.4	≤2.4	≤2.4	≤2.4
Loss Factor (1MHz)	≤10^-3	≤10^-3	≤10^-3	≤10^-4
Flame retardant rating (cables)	IS0 19642	IS019642	IS019642	-
Temperature rating/°C	-40~125	-40~105	-40~125	-40~125
