Consumer Electronics Cable Material Solutions

Special Features

Halogen-free and environmentally friendly, meeting the requirements of various environmental regulations (HF, RoHS, REACH, TCO-10, TSCA, etc.).

Flame retardancy up to UL 94 V-0 level; cables meet various standards and requirements such as VW-1, FT-1/FT-2, and Cable Flame; and can withstand temperatures up to 125-150 degrees Celsius.

Customizable to various requirements such as color, feel, UV resistance, and resistance to environmental dirt.

Product Certification

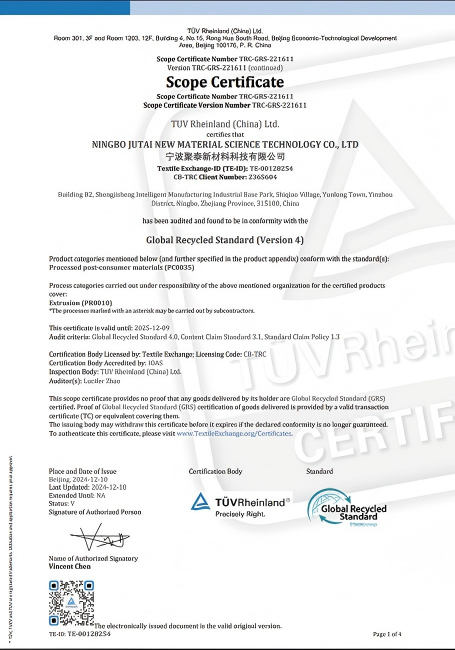

PCR Post-Consumer Recycled Materials TUV GRS Certification

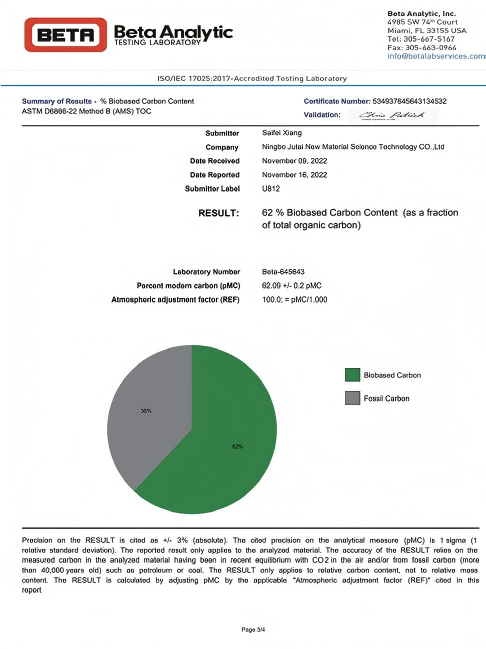

Bio-based materials certified by BETA Laboratories in the United States, with a bio-based content of up to 60%+.

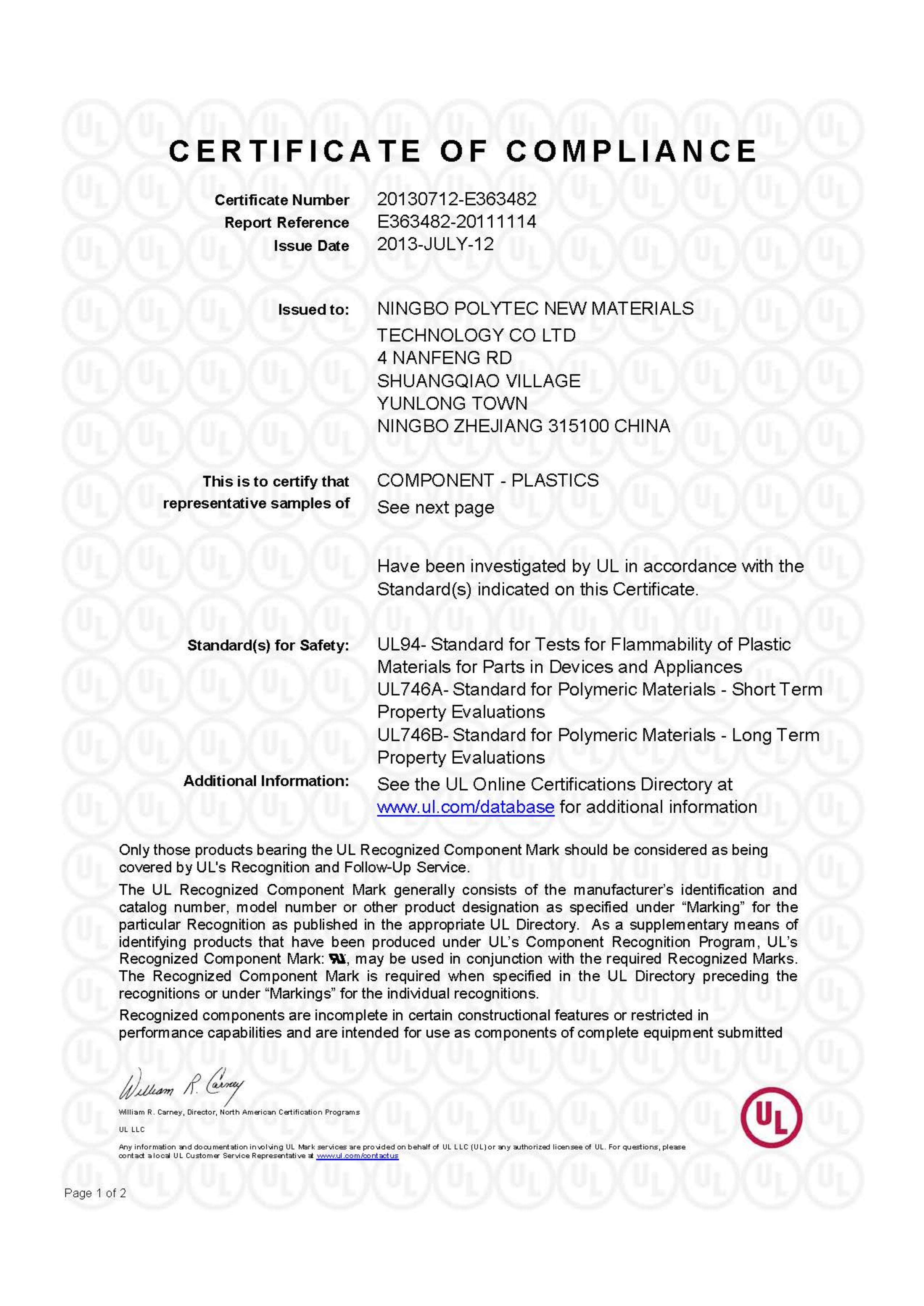

UL Flame Retardant Yellow Card Certification QMFZ2 (E363482)

Typical Solutions and Physical Properties

Typical Grades	P865-80	P839-88	U802-85	U812-88BH
Material Type	TPE	FRPE/TPE	TPU	Bio-based TPU

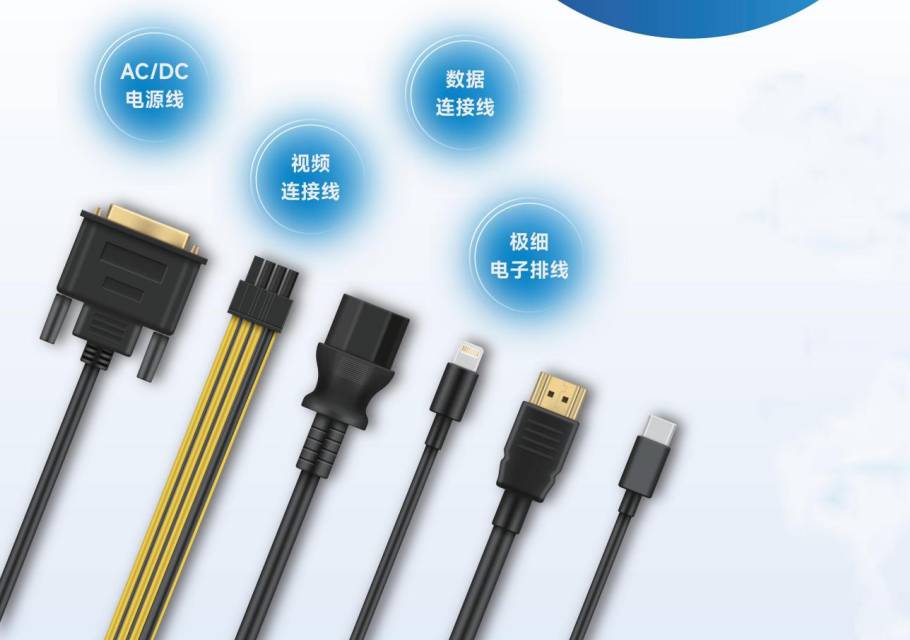

Typical Applications	US standard power cords such as SJEOOW	High-end USB cable	TPU data cable	Bio-based USB data cable
Temperature Rating/°C	-60~105	-40~90	-50~105	-40~80
Hardness/Shore A	80	88	86	89
Tensile strength / MPa	13	12	23	18.5
Elongation at break /%	450	430	520	450
Proportion	1.05	1.08	1.25	1.27

Typical Grades	P840-90	P841-58D	P701-868-95ZF	P701-898-95ZF
Material Type	MPPE-PE	MPPE	XLPO / XLPE	XLPO / XLPE
Typical Applications	UL1581/758 - Halogen-free flame-retardant AWM electronic wire
Temperature Rating/°C	-40~80	-40~105	-40~125	-40~150
Hardness/Shore A	90	98A,(58D)	95	95
Tensile strength / MPa	14.5	22	15.5	14.5
Elongation at break /%	280	200	430	350
Proportion	1.06	1.06	1.06	1.37
